The Hyperbaric Chamber

Breathe Deeper. Recover Faster. Perform Better.

Inquire Now
Remedy Place hyperbaric chamber

“Hyperbaric has been one of the most powerful modalities for my patients and Remedy Place guests for over a decade.”

Dr. Jonathan Leary

Hyperbaric Oxygen, Elevated

Hyperbaric therapy increases the amount of oxygen your blood can carry. In a pressurized environment, oxygen dissolves more efficiently into your plasma, delivering it deeper into tissues, muscles, and the brain. At Remedy Place, we reimagined this clinical technology into a sophisticated, comfortable, and design-forward experience, built to be owned.

More Oxygen. Better Function.

Oxygen is fundamental to nearly every process in the body. Increasing its delivery can support faster muscle recovery, reduced inflammation, sharper cognitive clarity, improved energy, and cellular repair and regeneration. This is not just recovery. It is enhanced performance.

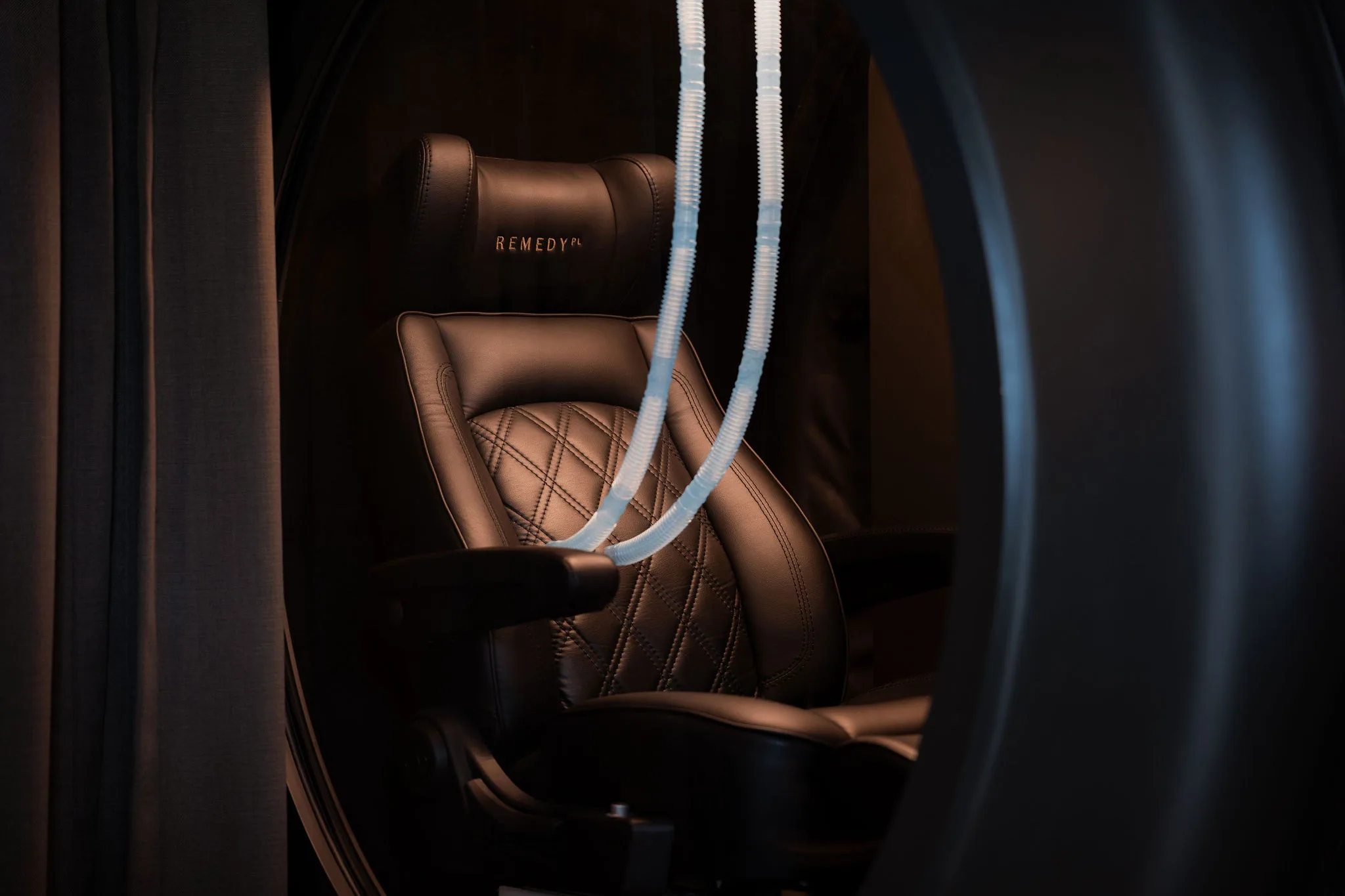

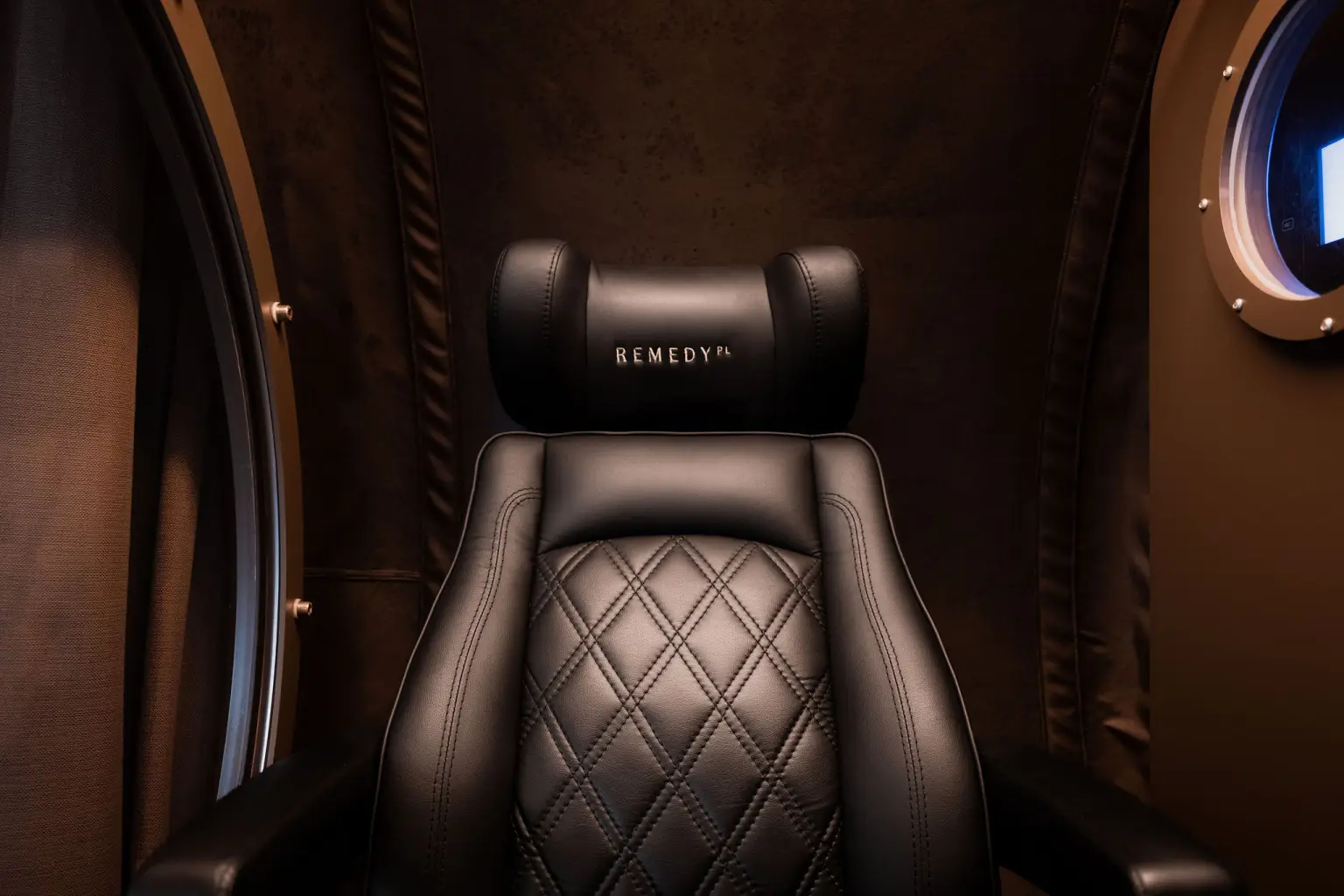

Chamber seat

A Panoramic View

Wide, full-visibility acrylic panels wrap the chamber in a true panoramic view. Instead of the closed capsule most hyperbaric therapy takes place in, you stay open to the room, the light, and the space around you, so every session feels calm and connected rather than confined.

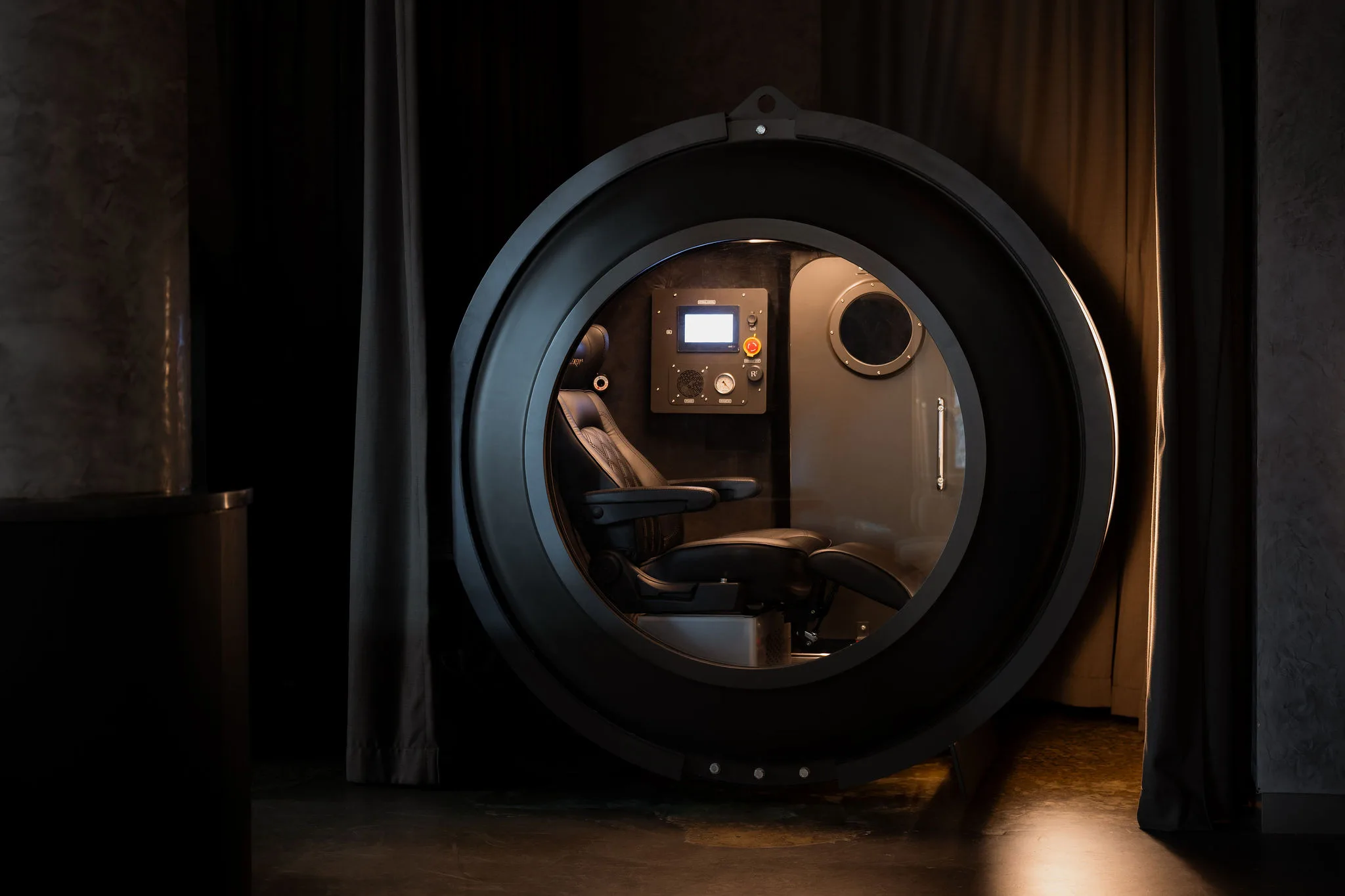

Hyperbaric chamber exterior

Precision-Controlled Therapy

Every session is fully automated. HPOSoft smart automation manages each compression and decompression curve, while an advanced sensor network monitors oxygen, pressure, temperature, and humidity in real time. You relax. The system handles everything else.

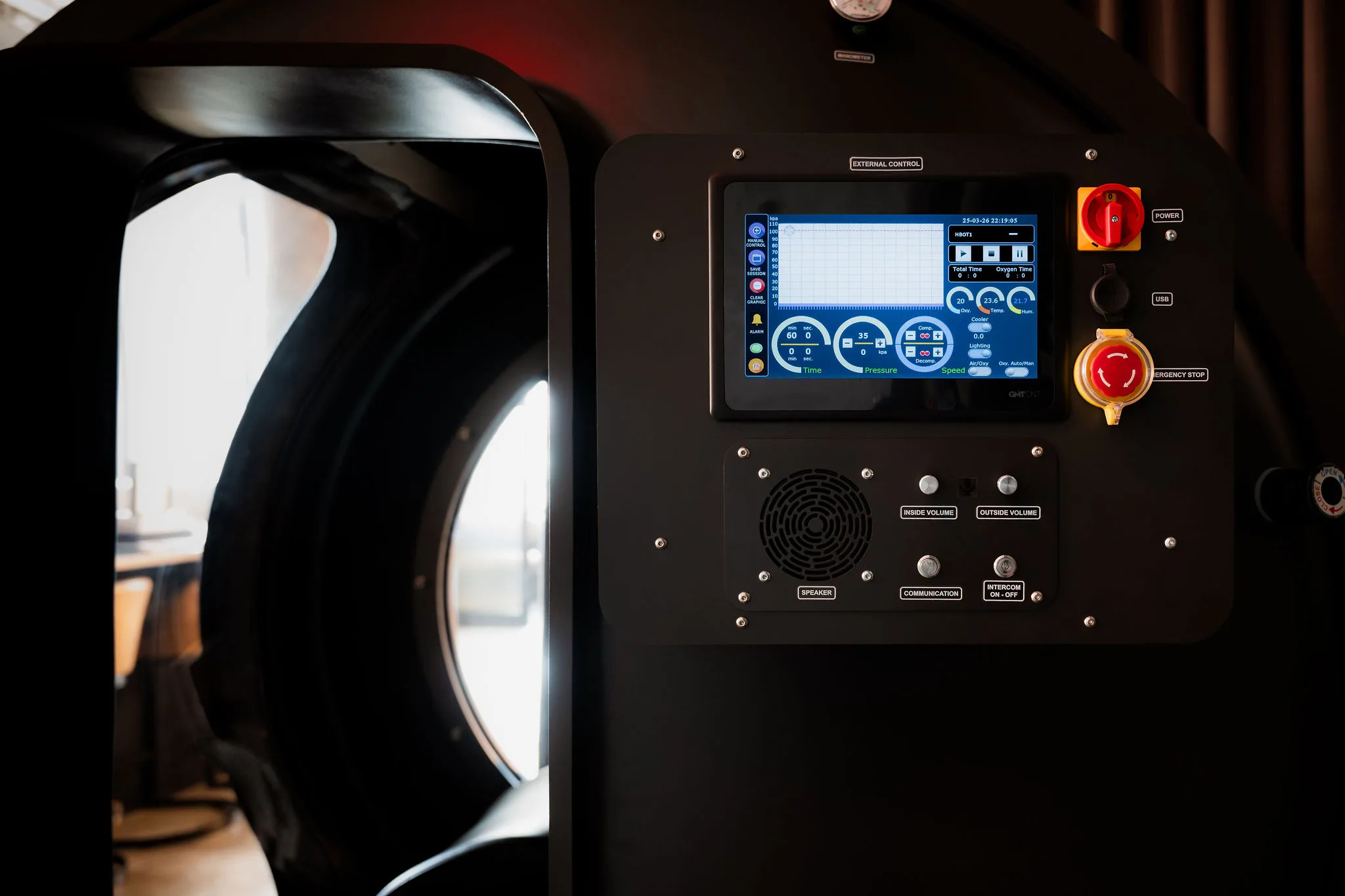

External control panel

Considered, To Every Detail

BIBS Oxygen Mask

A continuous flow of pure oxygen, regulated to your breath, that keeps carbon dioxide from building at pressure.

Ecologic Leather Interior

Ergonomic seating tailored to reduce pressure points and support circulation through the session.

Full-Visibility Viewports

Three-piece high-strength acrylic panels create openness, not confinement.

Dual Control Panels

Mirrored internal and external touchscreens, with manual overrides and independent emergency systems.

UVC Self-Cleaning

Automated ultraviolet sterilization runs between sessions with a motion-sensor safety interlock.

Ambient LED & Entertainment

Adjustable RGB lighting, a large-screen display, and continuous fresh-air ventilation.

A Fully Integrated System

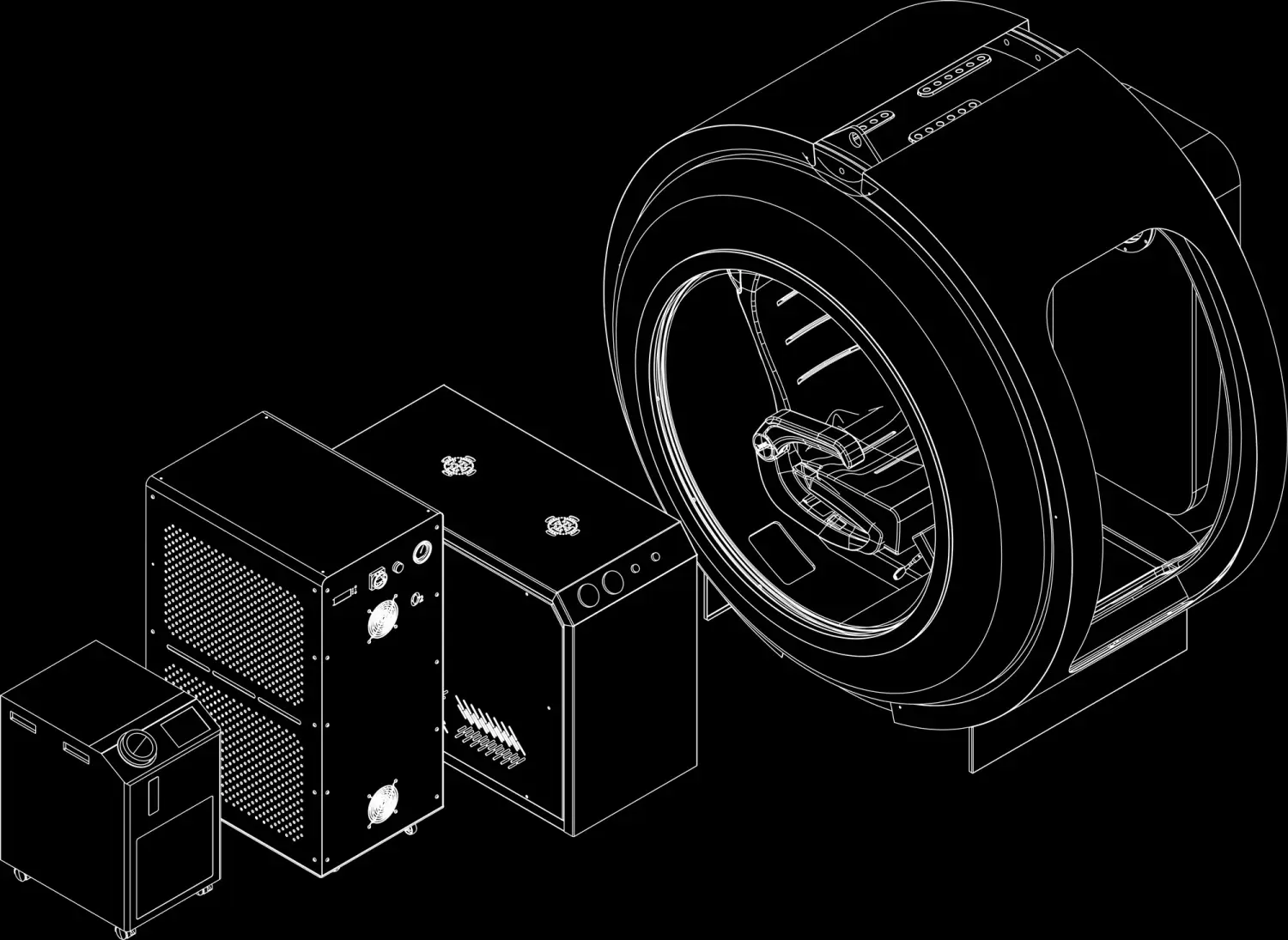

Hyperbaric system diagram: chamber, oxygen concentrator, air compressor, and cooling system

Chamber, oxygen concentrator, air compressor, and cooling system, engineered to work as one.

Technical SpecificationsDimensions, performance, and all integrated components
+
Chamber & Build
Capacity
1 person, single seat, monoplace
Classification
Class IIb active medical device
Primary material
Aerospace-grade aluminium
Shell & coating
5 mm sandblasted aluminium, flame-retardant medical-grade epoxy
Shape
Cylindrical single unit, 3 modules, fits any standard doorway
Door
Pressure-resistant sealed sliding acrylic assembly
Viewports
3-piece high-strength acrylic20 / 30 / 50 mm
Dimensions & Weight
Overall length
1344 mm52.9 in
Overall width
1987 mm78.2 in
Overall height
1858 mm73.1 in
Internal diameter
1620 mm63.8 in
Internal volume
2 m³70.6 ft³
Weight
400 kg882 lb
Minimum floor size
5500 × 2800 mm18 ft × 9.2 ft
Performance
Operating pressure
2.0 ATA (1.0 bar)options 2.4 / 3.0 ATA
Oxygen delivery
Pure oxygen via BIBS, over 90% purity
Air pressurization
3.45 to 7.2 bar
Ventilation rate
125 to 400 LPM
Emergency depressurization
2.0 ATA to 1.0 ATA in 90 seconds
Automation
HPOSoft V2.0, logging every 5 sec, O₂ to ±0.1%
Maximum patient weight
225 kg496 lb
Integrated Components
Oxygen concentrator
2500 W, 1 to 20 LPM, 5 bar, ±93% purity, 155 kg
Air compressor
4 HP, 1 to 8 bar, 564 LPM, 67 kg
Air cooler
1 kW, ±0.1°C stability, air-cooled refrigeration
Power
[site electrical requirements confirmed on inquiry]

Inquire

Tell us about your space and we will follow up with configuration, pricing, and next steps.
